Bicycle Full Height Turnstile

Product Introduction

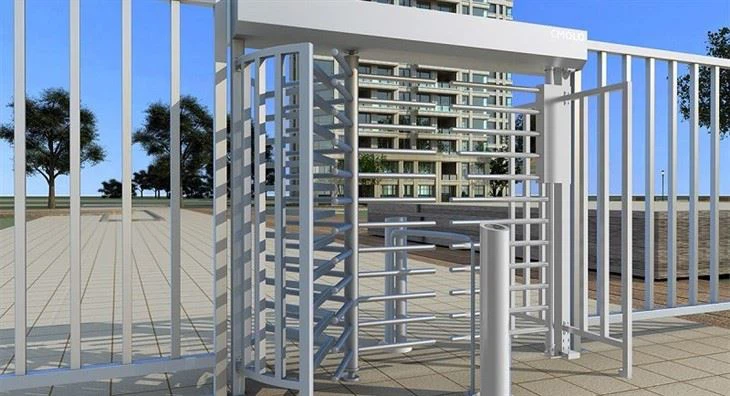

Bicycle full height turnstile CPW-251AB01 is fully-automatic type with dual passageways, which are shared by pedestrian & bicycle, turning at 120°. The housing made of high quality stainless steel is durable; the mechanism modules are using the international top brand DC brushless motors and precise positioning encoders, so as to ensure that turnstile arms can rotate quickly and accurately, stably and quietly, with low-power consumption, energy conservation and environment protection.



Features



Advanced core patented technology	Condensation resistance	IP65	Shared by pedestrian & Vehicle
Unattended	low temperature resistance	Modular design, easy maintenance	High compatibility, high integration
Long life, longer than 10 million times	High temperature resistance	Accurate & fast detection	Optimize the mechanism structure, high stability

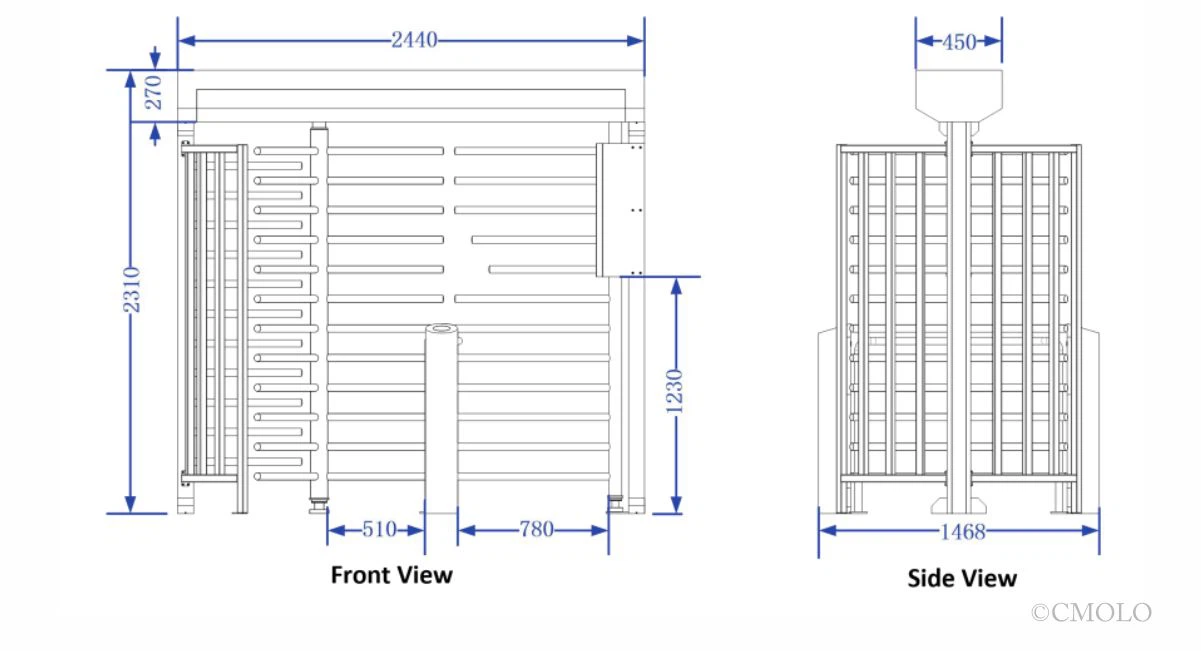

Dimension Drawing





Parameters



Structure Parameters
Housing material	304 grade stainless steel
Surface treatment	Brushed finish
Arms material	304 grade stainless steel
Technical Parameters
Normal throughput capacity	20 ~ 35 people / min(according to the condition of pedestrians)
Evacuate throughput capacity	60 people/min(according to the condition of pedestrians)
Operation temperature	﹣20℃~60℃
Electric Parameters
Power supply	100-240VAC,50/60Hz
Rated power	50W
Input / Output signal	6-channel relay signal output / 8-channel dry contact signal input
Communication interface	RS485 / RS232;TCP/IP interface(customizable)
Driving motor	DC brushless motor
Positioning method	Use the encoder to position the gate accurately
Method of motor control	Use high-performance DSP chip



Customization



System integration



Integrate with access control system, human body temperature measurement system, ticketing system, time attendance system, visitor system etc.



Integrate with QR code, face, fingerprint, ID/IC card, passport identification system etc.



Integrate with card collection system, and customize card collection device



Constant Temperature System: Under the low temperature environment, a constant temperature system can be installed inside the turnstile.



Cabinet: Cabinet size, material and surface treatment process etc. of speed gate turnstile can be moderately customized.





FAQ



Q1: Can this bicycle full height turnstile realize one person passing through at a time?

Answer: Yes. The full height turnstile adopts a mechanical anti-tailgating design, which can realize one person passing through at a time.



Q2: How do you pack this full height turnstile?

Answer: The cabinet and the rotating column are detachable with PE foam and plywood crate to pack, which are easier for transportation.



Q3: How is the delivery term?

Answer: EXW, FOB, CIF, C&F, DDU, DDP etc.
