Motorized Speed Gate Turnstile Entry System

Product Introduction



Motorized speed gate turnstile entry system CPW-322DS with bridge type is transparent and bright, simple and elegant; the housing made of stainless steel is durable; the mechanism modules are brushless DC motors and precise positioning encoder, so as to make sure the swing gate can move quickly and accurately, stably and quietly, with low-power consumption, energy conservation and environment protection.



Features



High safety, triple anti-pinch	Long life, longer than 10 million times	Accurate & fast detection	Modular design, easy maintenance
High visitor flow rate usage	High compatibility, high integration	Optimize the mechanism structure, high stability	Advanced core patented technology

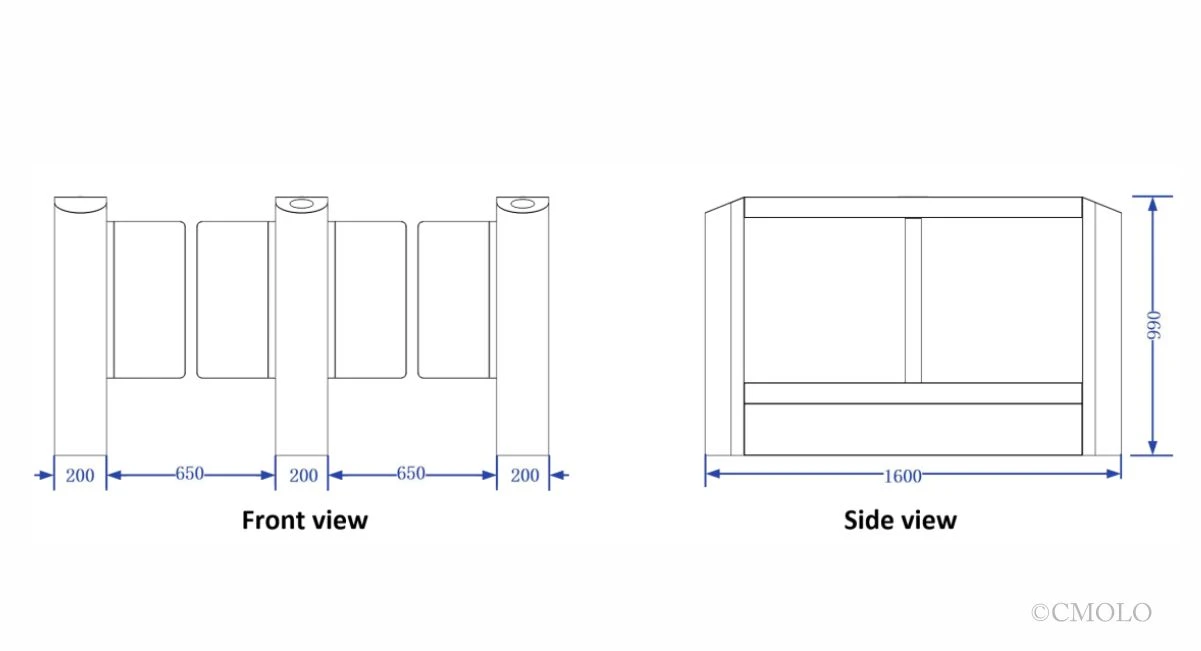

Dimension Drawing





Parameters



Structure Parameters
Housing material	304 grade stainless steel
Surface treatment	Brushed finish
Swing gate material	Organic glass
Technical Parameters
Normal throughput capacity	30 ~ 45 people / min(according to the condition of pedestrians)
Evacuate throughput capacity	60 people/min(according to the condition of pedestrians)
Opening speed of swing gate	0.3-0.6s
The turning angle of swing gate	±90°
Operation temperature	﹣20℃~60℃
Electric Parameters
Power supply	AC100-240V,50/60Hz
Rated power	100W
Input / output signal	12-channel relay signal output / 8-channel dry contact signal input
Communication interface	RS485 / RS232;TCP/IP interface(customizable)
Driving motor	DC brushless motor
Positioning method	Use the encoder to position the swing gate accurately
Method of motor control	Use high-performance DSP chip



Customization



● Surface treatment of the cabinet: Satin finish / polishing / dull polish / electroplating / baking finish.



● System integration:



Integrate with access control system, human body temperature measurement system, ticketing system, time attendance system, visitor system etc.



Integrate with QR code, face, fingerprint, ID/IC card, passport identification system etc.



Integrate with card collection system, and customize card collection device



● Cabinet: Cabinet size, material and surface treatment process etc. of speed gate turnstile can be moderately customized.



● Material of the gates: Tempered glass / acrylic / polycarbonate, and color can be customized.



● Passageway width: The maximum lane width of turnstile is 900mm, and the cabinet length can be increased accordingly.







FAQ



Q1: What is the maximum passageway width of this motorized speed gate turnstile entry system CPW-322DS?

Answer: 900mm.



Q2: Shall we customize the cabinet length smaller?

Answer: Sure, customization for customers is one of our main advantages.



Q3: Can we add card collector inside the turnstile?

Answer: Yes. Dimension drawing can be provided for your reference.
