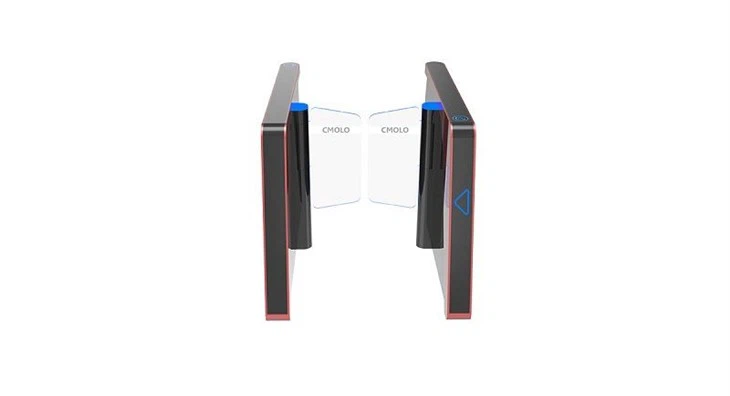

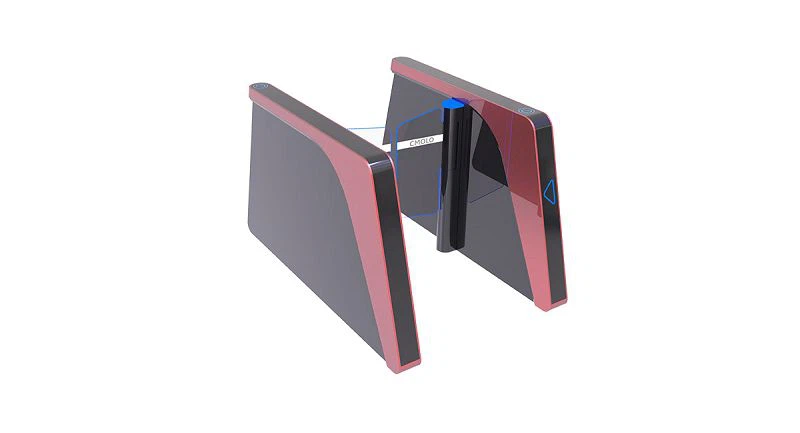

Swing Gate Barrier RFID System

Product Introduction



With the design concept of simple, science fiction and asymmetry, new appearance, new craft and new structure, it looks very unique, not only meeting the functional requirements, but also containing the geometry and technology beauty. Swing gate barrier CPW-134Y is specially designed for high-end intelligent building.



Features

High safety, triple anti-pinch	Advanced core patented technology	High visitor flow rate usage	Modular design, easy maintenance
High compatibility, high integration	Optimize the mechanism structure, high stability	Long life, longer than 10 million times	Accurate & fast detection



Safety Design



Emergency open



Swing gate barrier with card reader equips with emergency escape control device, to make the system automatically open the gate to evacuate pedestrian.



Swing gate barrier with card reader opens when power failure



With the independently developed advanced mechanical structure, the system will automatically unlock the gate when the power is off, and the gate can be manually pushed to open, which is convenient for pedestrian evacuation.



Anti-electric shock



All electric modules are designed to operate under the safety voltage of 24V, and configured with residual current protective device to prevent pedestrian from being injured by electric shocks.



Triple anti-clamping



With triple anti-clamping technologies such as infrared anti-clamping, mechanical anti-clamping and anti-collision by advanced electric current detection, swing gate barrier can protect pedestrian safety more comprehensively.



Over-force feedback control



When the gate is momentarily subjected to an impact force beyond the safe range, the gate can be slowly pushed for a certain distance to buffer the impact force on the mechanism and the reverse impact force on pedestrians.



Advanced & Intelligent Turnstile Core Technology



Advanced core logic algorithm



Swing gate barrier adopts CMOLO® patented passing detection algorithm and matrix photoelectric stereo detection technology, to sensitively detect illegal behaviors such as reversely passing and tailgating, and issues warnings in the form of sound and light, and can be linked with other security systems.



It adopts advanced servo control system and DSP+ARM motor control technology, combined with the motor control algorithm independently developed by CMOLO, which can achieve precise control and positioning of the obstacle and maintain stable performance.



Strong mechanism structure



CMOLO's self-developed lossless modular mechanism structure and full CNC processing technology are to ensure the precision, strength and concentricity of the mechanism. The transmission ratio is accurate, efficient and stable, and the rotation angle of the gate can be precisely controlled and the loss is reduced, so as to ensure the stability and long service life of the mechanism structure.



Long service life



The mechanism and control system of swing gate barrier have been passed 10 million times life test.



The Highlight of Appearance Design

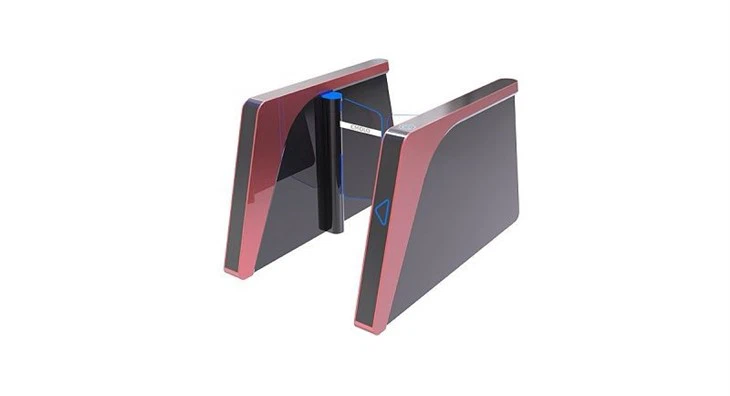

The cabinet and speed gates' outline are trapezoid, reflecting the new geometrical aesthetics.

Dividing the cabinet into red and black parts, the red part is slightly larger than the black part, which is multi-layered.



The cutting line is naturally smooth, extending from top to bottom, and the downward part is not parallel to the line around the turnstile, showing a free and unrestrained attitude.



The corners are designed with arcs to avoid sharp corner injuries to ensure the safety of users.



Besides red & black, we have also designed white & black, blue & black. Other color assortment is also optional.



Application

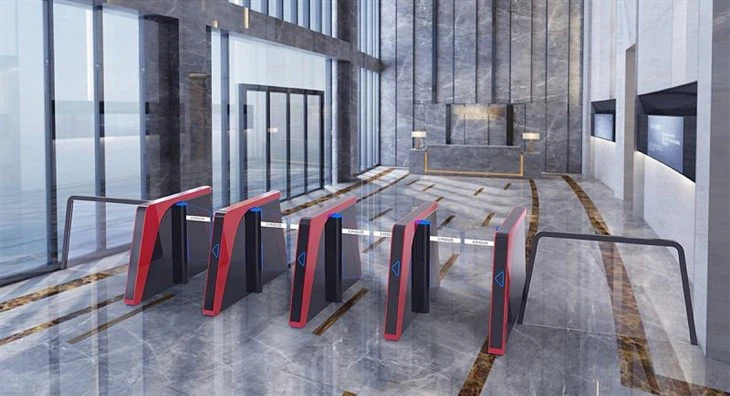

Commercial buildings, subways, airports, customs, exhibition halls, government buildings, financial institutions, senior clubs and other high-end indoor applications.

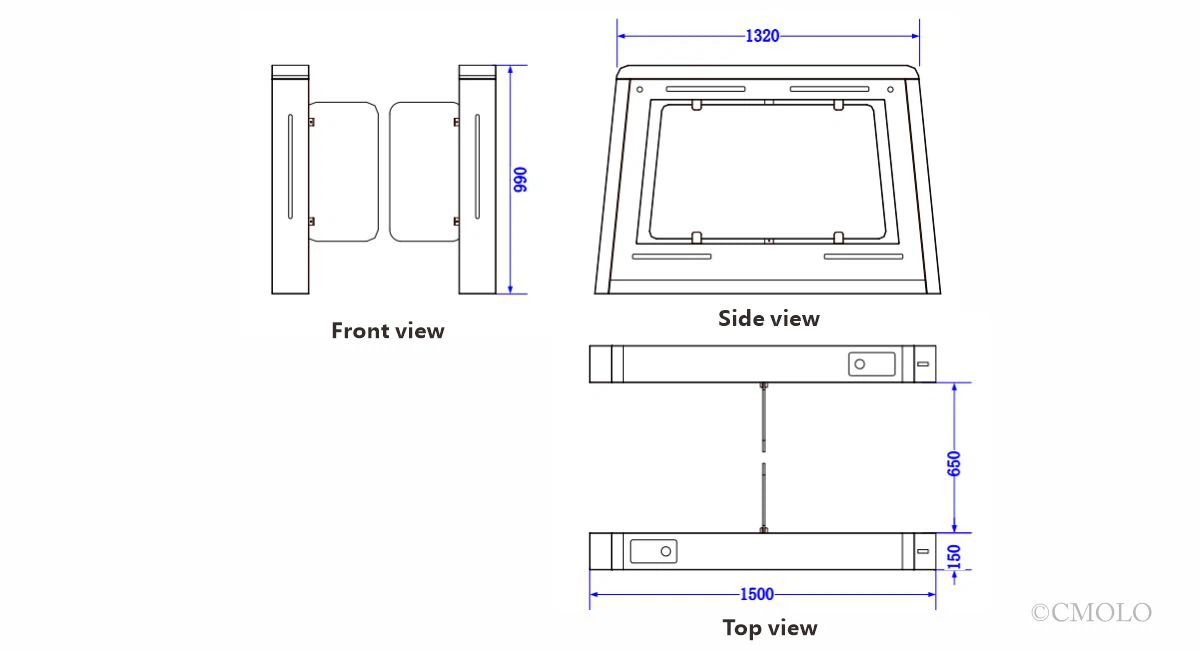

Dimension Drawing





Customization



System integration:



Integrate with card collection device



Integrate with human body temperature measurement system, ticketing system, time attendance system, visitor system, access control system, etc.



Integrate with QR code, face, fingerprint, ID/IC card, passport identification system etc.



Appearance: Cabinet color, cabinet size, material and surface treatment process etc. of turnstile can be moderately customized.





FAQ



Q1: How many pairs of IR sensors are they?

Answer: The standard design is with 10 pairs of IR sensors. More sensors can be added if needed.



Q2: What is the maximum passage width of swing gate barrier RFID System CPW-134Y?

Answer: 900mm.



Q3: In addition to red & black, what other color is also optional?

Answer: We have also designed white & black, blue & black. Other color assortment is also optional.
