Retractable Flap Barrier System

Retractable Flap Barrier System

APW-TS700

Features

Product Introduction

Retractable flap barrier system APW-TS700, inheriting classical culture, is designed with the theme of "blue and white porcelain", fresh and elegant, simple and unique.

Features

product-74-74

High visitor flow rate usage

product-69-69

High compatibility, high integration

product-74-74

Accurate & fast detection

product-74-74

Long life, longer than 10 million times

product-74-74

Optimize the mechanism structure, high stability

product-74-74

Advanced core patented technology

product-74-74

Modular design, easy maintenance

product-74-74

High safety, triple anti-pinch

Application

Retractable flap barrier system APW-TS700 is suitable for commercial buildings, airports, exhibition halls, government buildings, financial institutions, clubs and other high-end indoor applications.

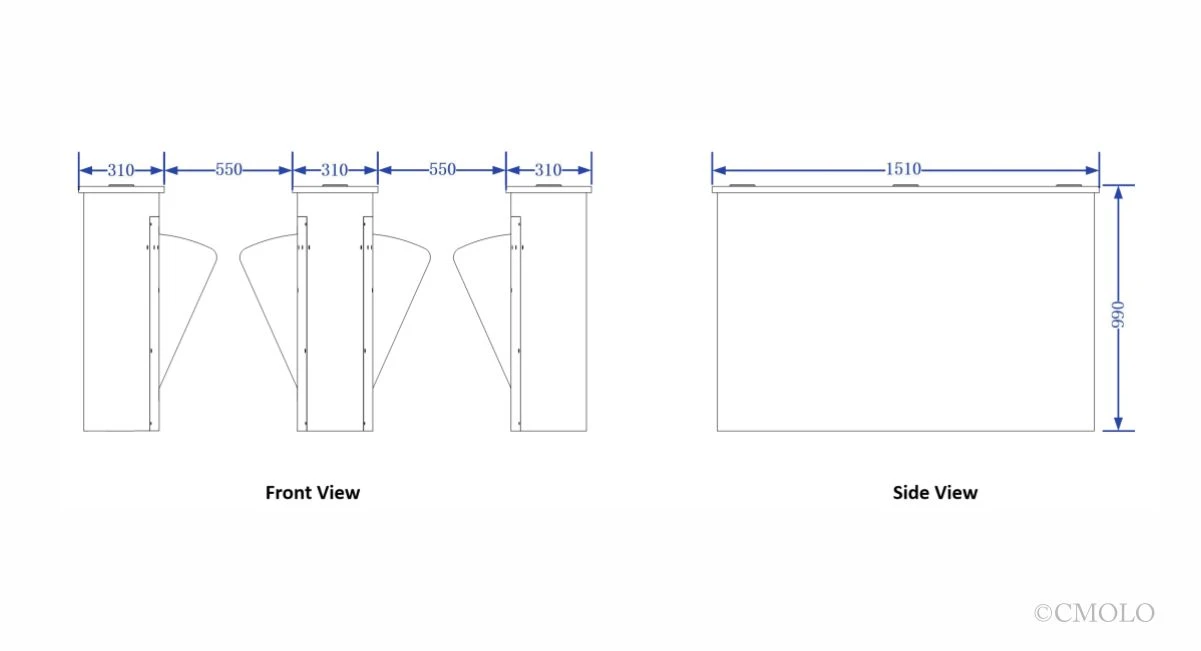

Dimension Drawing

product-1201-651

Parameter

Technical Parameters
Operation temperature	﹣20℃~60℃
Normal throughput capacity	30 ~ 45 people / min(according to the condition of pedestrians)
Evacuation throughput capacity	60 people/min(according to the condition of pedestrians)
Opening speed	0.3-0.6s
Electric Parameters
Positioning Method	Use the encoder to position the wing gate accurately
Power supply	100-240VAC,50/60Hz
Rated power	100W
Input/ Output signal	12-channel relay signal output / 8-channel dry contact signal input
Communication interface	RS485 / RS232;TCP/IP interface(customizable)
Method of motor control	Use high-performance DSP chip
Driving motor	DC brushless motor
